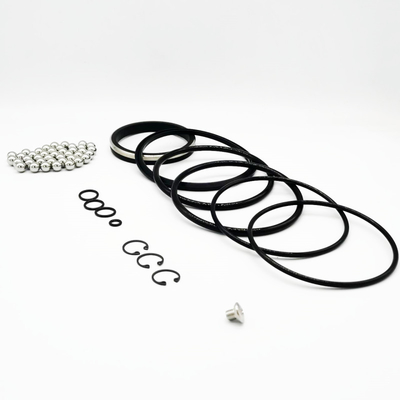

3-Inch Figure 1502 Wide-Style Swivel Joint Seal Repair Kit

3-Inch Wide-Style Swivel Seals: Check Profile and Hardness Before Replacement

The 3-inch dimension identifies the swivel joint reference, not the diameter of each replacement ring. Match the wide-style construction and individual seal dimensions; a narrow-style set or a kit for another joint size must be reviewed separately.

Follow the swivel joint manufacturer’s inspection, lubrication, assembly and post-repair procedure. The seal set has no independent pressure rating. Sour-gas or rapid gas decompression duty needs compound-specific qualification. Our ISO 9001 quality management supports agreed specification review and inspection.

Swivel joint seals and O-rings — confirm exact profiles and kit contents

This enquiry covers replacement seals and O-rings for a matching 3-inch Figure 1502 wide-style swivel joint. Confirm the joint manufacturer, model and seal profiles against the approved component drawing. NBR, HNBR and FKM are alternative compound families; agree the grade and service conditions for each required part.

Specify O-ring hardness in Shore A with the target tolerance and compound code.

=>Customization is also available for customers that require non-standard compounds, additional or customer specific metal or other non-rubber parts.

Custom labels can identify the kit code, tool reference, drawing revision, compound and hardness; agree the required fields before packing.

Related wireline kits — separate from this swivel joint seal set:

• #10 setting tool - With burst disk

• #20 setting tool - With burst disk

• AP Compact Setting Tool Kit

• Grease Tubes Seal Kit

• 3 1/2” Shorty Kits

• 3 - 1/8" Weight Bar Kit

• #10 Baker Firing Head Kit

• #20 Firing Head Kit

• #20 BP3.SEC kits

• #10 BP3.SEC kits

• T-BRT redress kit

• T-1 Set

• GC Stripper Head Redress Kits

Note: Confirm whether the specified kit includes a bleeder disc. Any disc must follow the original tool part specification; no pressure-relief setting is established by this kit listing.
